Panzano

Panzano is a nucleus of Casbas de Huesca in the Hoya de Huesca district. It is probably fastest to approach Panzano from one of the main roads, the N-240, or the A-22, between Huesca and Barbastro. On the A-22 take exit 89 where the HU-V-3311 with Liesa is shown. You will land on the roundabout on the N-240 from where you must follow the signs towards Liesa, then Ibieca, Aguas (you are now on the A-1227) and finally Panzano. Take the branch into the village and you will soon arrive at the Parque público, which is the former mill pond.

Pictures: 04.xi.2001, 06.x.2021

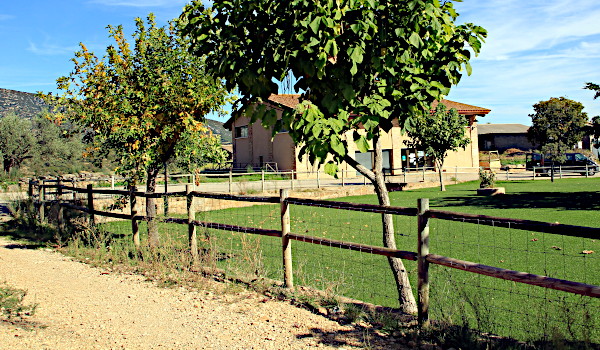

(1) The Parque público, site of the former mills — 2021

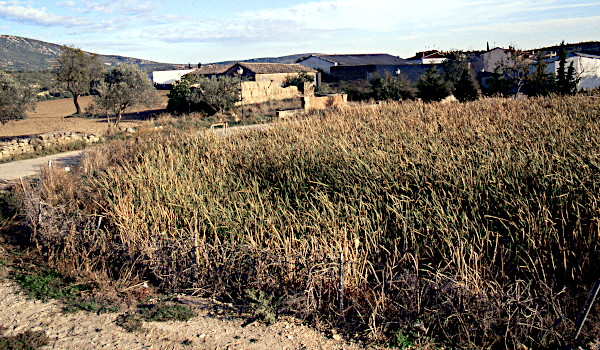

(2) The site of the mills before the changes — 2001

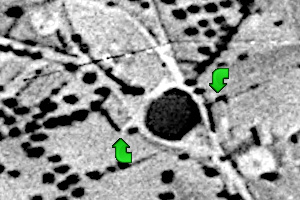

(3) Vuelo del Americano B, 1956 — © ign.es

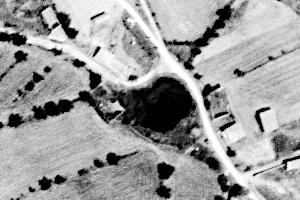

(4) Vuelo Interministerial, ix.1977 — © ign.es

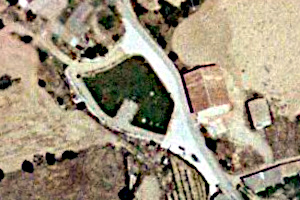

(5) Vuelo PNOA, 2006 — © ign.es
The arrow at right (3) points to the first mill, shown in 2, and 6 – 9. The other arrow points to the second mill, shown in 10 – 11.

The dark area between the two mills (3, 4) was a pond (2) and has been turned into the municipal park (1, 12).

The new building (1) was constructed on the site of the first mill.

The shed visible to the right behind the new building (1) is also visible behind the mill in (2, 6) and in each of the aerial views.

Note the white dots on the grass of the municipal garden (5): these are the roller stones (12).

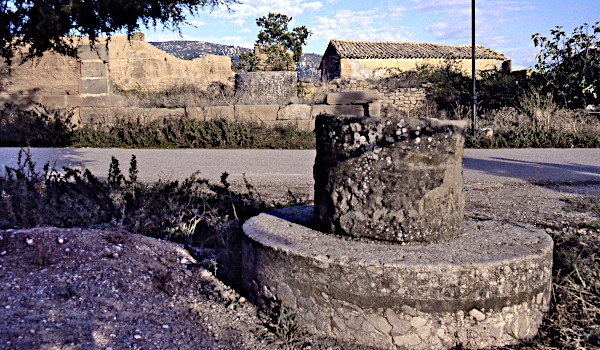

(6) Roller stones in front; the first mill at the other side of the road; the shed in the background — 2001

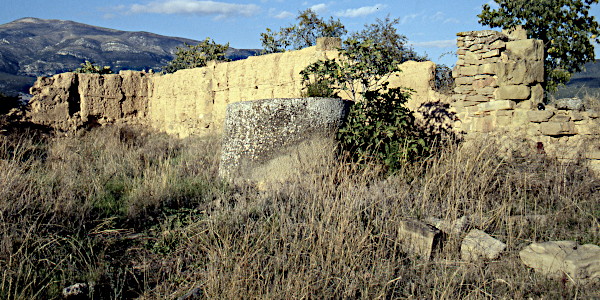

(7) The walls were built from adobe supported by a skeleton from ashlar stone — 2001

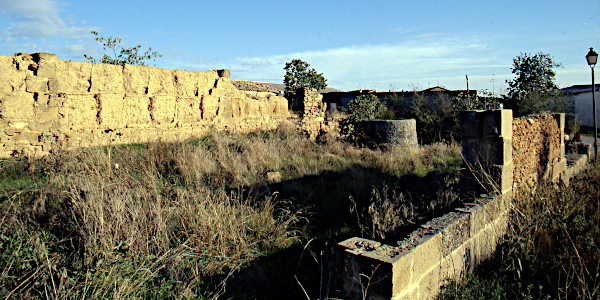

(8) Between the walls of the first mill; huge oil vessel — 2001

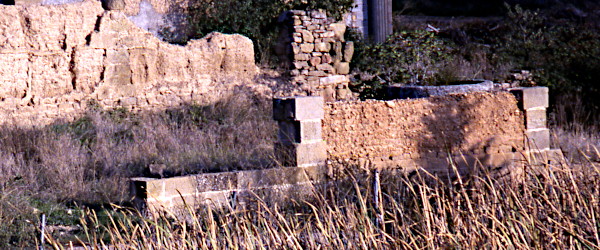

(9) First mill — 2001

(10-11) The second mill (arrow at left in 3)

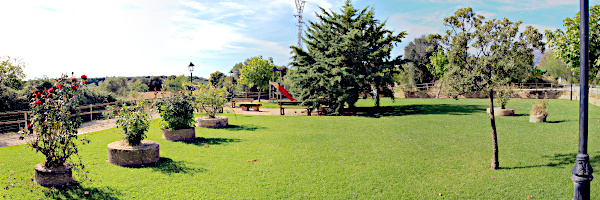

(12) Municipal park (Parque público) with roller stones — 2021
Sizes of the roller stones (left to right):
  1. ∅ 75 cm
  2. ∅ 120 cm
  3. ∅ 120 cm
  4. ∅ 150 cm

  1. ∅ 110 cm, the regaifa (13)
    hidden by the tree in the center
  2. ∅ 150 cm
  3. ∅ 70 cm

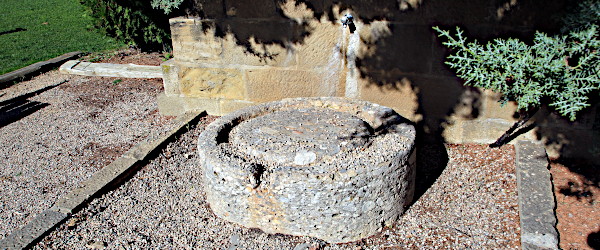

(13) Regaifa, base plate of the press, with a tap above it ∅ 110 cm — 2021
